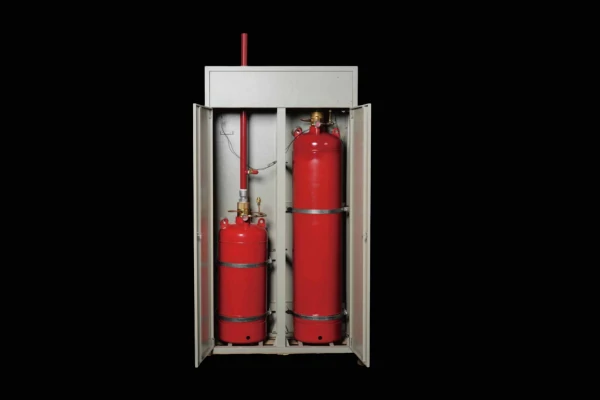

Cabinet-Style Dry Chemical Fire Extinguisher
The Cabinet-Style Dry Chemical Fire Extinguisher is an essential fire safety component for commercial and industrial settings. It integrates a dry chemical fire suppression system that’s proven to be effective against a broad spectrum of fires, such as Class A, B, and C fires. This extinguisher is distinguished by its ability to discharge a dry chemical agent that interrupts the chemical reaction at the heart of the fire, thus extinguishing it. The system is user-friendly, requiring minimal training for operation, and is designed for easy maintenance to ensure readiness at all times. Its compact cabinet-style design allows for space-saving installation, making it a practical choice for areas where floor space is at a premium.
Dry Chemical Fire Extinguisher
Specifications and Technical Parameters
Model Specifications
ZFGY30AC-JXJA
ZFGY65AC-JXJA
Capacity Types: 70L, 130L
| Storage Container Volume (L) | Container Diameter and Height (Φ × H mm) | Storage Pressure at 20°C | Maximum Working Pressure at 50°C | Operating Temperature Range |
| 70L | Ф350x(918+20) | 2.5MPa | 3.1MPa | -20℃~+50℃ |
| 130L | Ф350x(1546+20) | 2.5MPa | 3.1MPa | -20℃~+50℃ |
Technical Parameters
| Model | ZFGY30AC-JXJA | ZFGY65AC-JXJA |
| Fire Extinguishing Dosage (kg) | 30KG | 65KG |
| Effective Spray Time (s) | ≤30S | |
| Spray Residue Rate (%) | ≤10 | |
| Dry Powder Storage Container Volume (L)) | 70L | 130L |
| External Dimensions (mm) (Manual) | 550x500x(1740±20) | 550x500x(2240±20) |
| Drawing Dimensions | 530*500*1450 | 550*530*2000 |
| Storage Pressure at 20°C | 2.5MPa | |
| Activation Voltage/Current | DC 24V≤1.6A | |
| Operating Temperature Range | 20℃~+50℃ | |
Application Scenarios
Suitable for extinguishing the following fires:
Suitable for extinguishing fires in the following locations
The cabinet-style ultra-fine dry powder fire extinguishing device is primarily suitable for various occasions such as transformer and switch rooms, pump rooms, cable tunnels, cable wells, oil depots, tobacco warehouses, production workshops, large material warehouses, grain and oil storages, mines, port terminals, airport hangars, garages, kitchens, logistics warehouses, and military arsenals.
