Novec 1230 Fire Suppression System
The Novec 1230 fire suppression system is an ideal choice for modern firefighting, employing advanced clean agent fire extinguishing technology. It stores the Novec 1230 (FK-5-1-12) fire extinguishing agent in liquid form and releases it in gaseous form. Novec 1230 is a colorless, odorless, halogen-free fluorinated ketone liquid chemical fire extinguishing agent. It is a clean fire extinguishing agent developed as a substitute for halons and hydrofluorocarbons (HFCs). It evaporates rapidly upon release, forming an inert gas that suppresses the oxygen supply to the fire source and effectively extinguishes the flames.
Advantages of the Novec 1230 Fire suppression System
Novec 1230 is a new-generation substitute for halon, a clean fire extinguishing agent. It is a safe and effective water-free fire extinguishing agent and also has environmental protection characteristics that are in line with modern green initiatives and environmental awareness.
- Different from traditional water-containing fire extinguishing agents, it will not cause water damage after extinguishing fires and is non-conductive.
- More in line with the trend of environmental protection and green development.
- It decomposes rapidly in the atmosphere and does not last long. Wide Range of Applications: Effectively extinguish Class A, B, and C fire hazards.
- It can be stored in narrow spaces, reducing costs and providing more storage options. Reliable Security: There is no residue after extinguishing fires, no secondary damage, and it can be used in areas or places where there are people.
- It has been included in the U.S. EPA's SNAP list, fulfilling the commitment to sustainable development.
- Tests are being carried out to confirm safety and quality standards. National Standard Certification: The system has been submitted for inclusion in ISO and CEN design standards.
What are its highlights?
As one of the clean agent fire extinguishing systems, the Novec 1230 fire suppression system can deal with a wide variety of fire types.
- Clean and environmentally friendly
- Widely applicable
- Flexibly designed
- Safe and reliable
- Compliant with regulations and industry standards
Are you eager to build a fire protection barrier for your precious assets and daily spaces?
Novec 1230 fire suppression system is your ultimate choice!
Components of the Novec 1230 fire suppression system
The system includes detectors, control units, storage containers and other devices. Through intelligent control, it can achieve fire extinguishing within 10 seconds or even less.
- Detectors: Such as smoke detectors and heat detectors, which are used to monitor fires and activate the system.
- Control units: Comprising control panels, pressure switches, alarm devices, etc., which are used to monitor and control the operating status of the system.

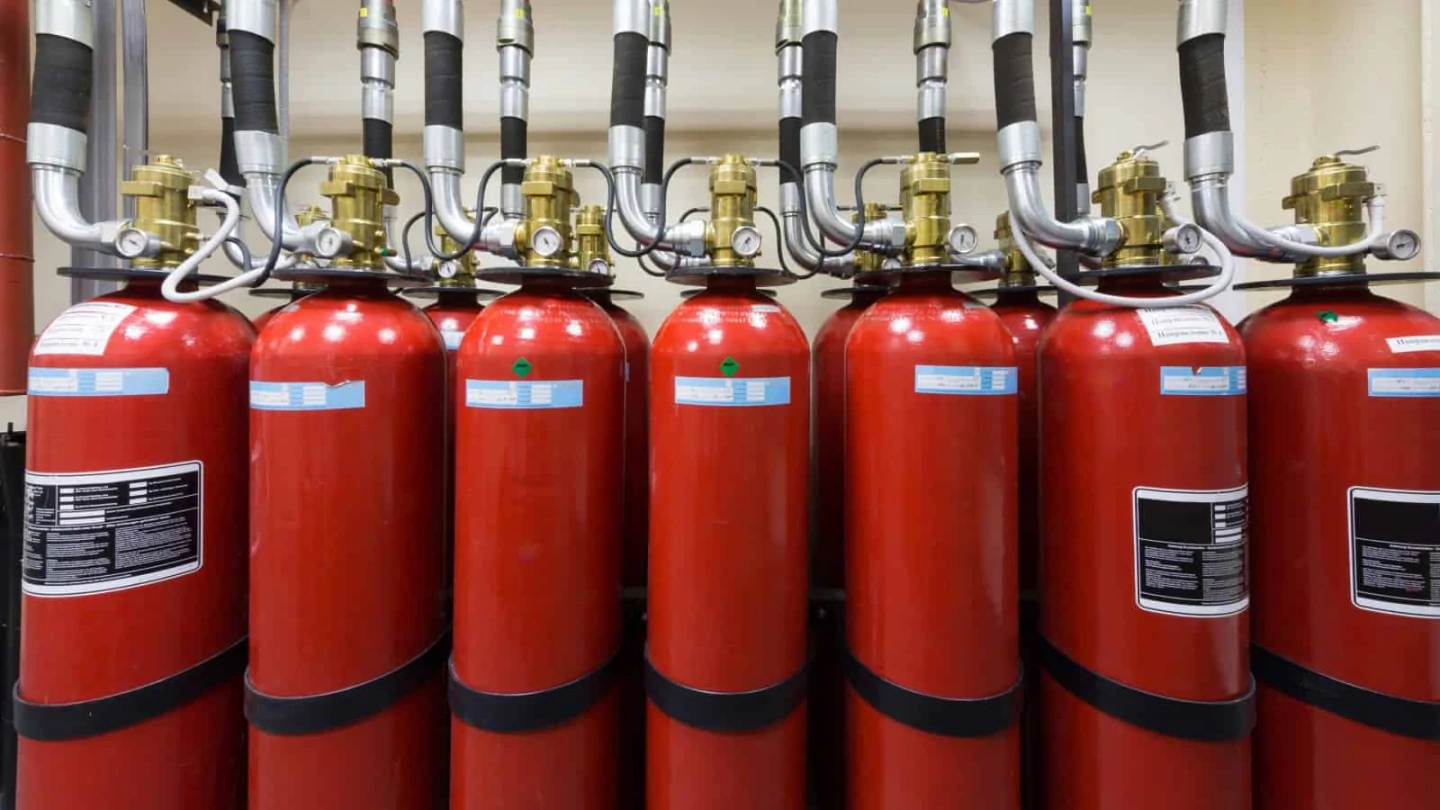

- Storage containers: Cylinders or tanks used for storing the Novec 1230 fire extinguishing agent.
- Fire extinguishing devices: Including sprinkler heads, pipes and other equipment required to release the Novec 1230 fire extinguishing agent into the fire scene.
Types of Flarenix Novec 1230 fire suppression systems
Although they are used in different scenarios, their effectiveness is the same, providing reliable protection for your personal safety and property.
Applications of the Novec 1230 Fire Extinguishing System
- Data centers and server rooms
- telecommunication equipment rooms
- libraries and archives
- hospitals and medical facilities
- aviation and aerospace
- power distribution rooms and electrical equipment rooms
- commercial complexes
- chemical storage areas
- oil and gas
Specification parameters
| Fire Extinguishing Agent Weight | 0.03-0.16kg, 0.3-0.5kg，0.5-0.8kg，1Kg，1.5Kg (selectable) |
| Device Enclosure | tainless Steel with Surface Paint Coating, Aluminum Alloy with Anodic Oxidation Finish (selectable) |
| Device Dimensions | 160*96*15,377*164*50,364*160*40mm or φ56*335, φ56*520 (selectable) |
| Types of containers | Single-bottle unit (40/70/90/100/120/150/180) |
| Double-bottle unit (70×2/90×2/100×2/120×2/150×2) | |
| Nominal Working Pressure (Mpa) | 2.5 |
| Maximum Working Pressure (Mpa) | 3.2 |
| Spray Time (S) | ≤10 |
| Filling Density (Kg/m³) | ≤1420 |
| Operating Temperature Range | -10~50℃ |
| System Extinguishing Method | Total Flooding |
| System Activation Power Source | 24V,1.3A |
| Safety Relief Device Activation Pressure (Mpa) | 4.5±0.225 |
