Throwable Fire Suppression Device
The Flarenix Throwable Fire Suppression Device is a non-pyrotechnic, aerial-deployable extinguishing capsule engineered for rapid response through vertical drop, horizontal launch, or clustered deployment using UAV-based launcher systems. Designed for early-stage fire intervention, it delivers agent payloads directly to ignition points in locations that are elevated, obstructed, or too hazardous for personnel. The device provides full 360° dispersion with an effective coverage radius of 1.6–1.8 m (5.2–5.9 ft), offering up to 10 m² (108 ft²) of suppression area across wildland, industrial, and critical infrastructure environments.
Product Description
Weighing 2 kg (4.4 lb) and constructed with a shock-resistant composite shell, the Flarenix throwable device is engineered specifically for UAV launcher integration and manual emergency deployment. It is internally configurable with three fire-control agent types—ABC dry chemical formulated to align with the agent performance characteristics referenced in NFPA 10, a water-based suppressant for rapid surface cooling and early Class A knockdown, or an aerosol-forming compound suitable for enclosed and semi-enclosed environments and aligned with aerosol behavior characteristics described in NFPA 2010 application principles. Each filling option is paired with a non-explosive mechanical dispersal module that uses a controlled internal pressure cartridge to rupture its release membrane, enabling uniform 360° agent distribution without combustion or pyrotechnics. The dispersal mechanism contains no pyrotechnic components of any type, ensuring safe transport, handling, and UAV integration under standard aviation safety practices.
The activation system incorporates three logic modes to support varied operational demands. An optical flame-trigger sensor responds to flame radiation above defined thresholds; an impact-based trigger activates upon surface contact forces of approximately 25–30 g; and a timed-delay mode provides programmable actuation between 2 and 6 seconds for coordinated UAV launches or cluster-pattern deployments. The device interfaces with clamp-type mounts, rail-based launchers, and clustered payload bays, maintaining compatibility with platforms such as DJI Matrice, Freefly Alta, and other high-payload UAVs.
The design accommodates both aerial and ground handling requirements, supporting safe drops from heights up to 5 m (16 ft) during loading and enabling optimal aerial release under wind conditions up to 8 m/s (18 mph). Its environmental operating range spans –10°C to 55°C (14°F to 131°F), with a storage tolerance of –20°C to 60°C (–4°F to 140°F). All agent configurations and dispersal methods follow the applicable performance principles referenced in NFPA 10, NFPA 18, and NFPA 2010 for their respective agent categories.
Product Features
Modular Agent Configuration：Three interchangeable payload options—ABC dry chemical, water-based suppressant, or aerosol compound—enable mission-specific selection.

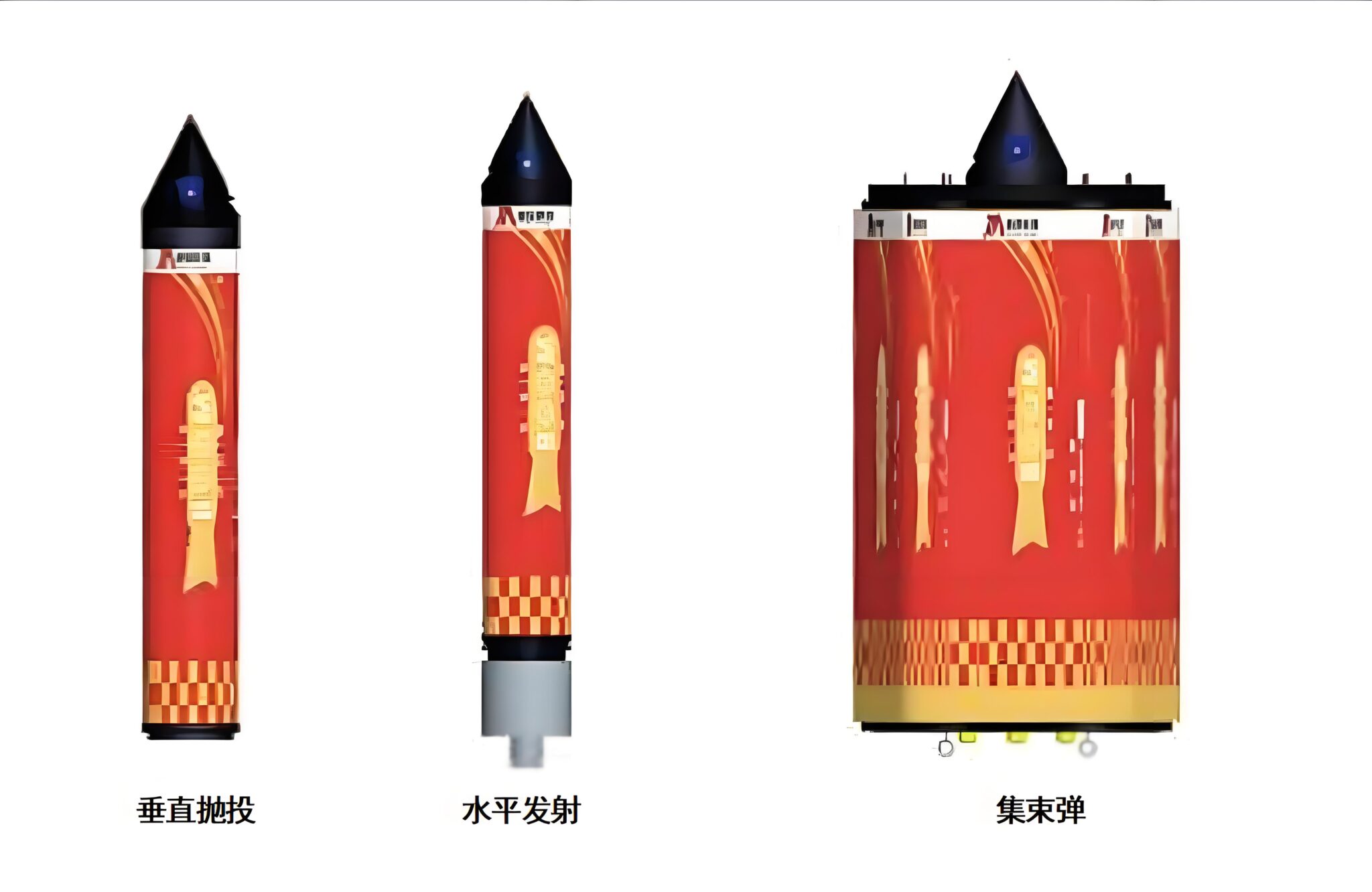

Multi-Mode Aerial Deployment：Supports vertical drop, horizontal launch, and cluster-based patterns through compatible UAV launch platforms.
Triple Activation Logic：Optical flame trigger, impact trigger, or a programmable 2–6 s time delay provide flexible operational control.
Compact UAV-Optimized Design：A 2 kg (4.4 lb) form factor with a 110 mm (4.3 in) diameter shell maximizes UAV payload efficiency.
360° Radial Dispersal：A non-pyrotechnic pressure module delivers uniform agent distribution across a 1.6–1.8 m (5.2–5.9 ft) radius.
Safety-Engineered Construction：Non-explosive dispersal, integrated safety lock, and NFPA-aligned agent performance protocols.
Technical Specifications
| Parameter | Specification |
| Total Weight | 2 kg (4.4 lb) |
| Dimensions | Ø110 mm × 155 mm (Ø4.3 in × 6.1 in) |
| Agent Options | ABC dry chemical; water-based suppressant; aerosol compound |
| Agent Volume | 600–750 mL (20–25 fl oz) |
| Dry Chemical Mass | 450–550 g (16–19 oz) |
| Coverage Area | Up to 10 m² (108 ft²) |
| Dispersion Radius | 1.6–1.8 m (5.2–5.9 ft) |
| Activation Modes | Optical flame trigger; impact trigger (25–30 g); timed delay (2–6 s) |
| Deployment Modes | Vertical UAV drop; horizontal launch; cluster launcher |
| UAV Compatibility | DJI Matrice; Freefly Alta; universal clamp/rail systems |
| Launch Velocity | 20–50 m/s (65–112 mph), dependent on launcher type |
| Operating Temperature | –10°C to 55°C (14°F to 131°F) |
| Storage Temperature | –20°C to 60°C (–4°F to 140°F) |
| Shell Material | Impact-resistant composite |
| Environmental Rating | IP54 dust/splash resistance |
| Safety | Non-pyrotechnic dispersal; mechanical safety lock |
| Standards Alignment | NFPA 10/18/2010 (agent-specific performance alignment) |
Applications
Wildland & Forest Fire Interception：UAV-deployed units suppress spot fires, embers, and flare-ups in terrain inaccessible to ground crews.
High-Rise Exterior Fire Response：Targets façade, balcony, and rooftop ignition points beyond ladder or platform reach.
Oil, Gas & Petrochemical Zones：Enables precision suppression in hazardous or explosive-risk environments without exposing personnel.
Chemical & Storage Facilities：Addresses ignition sources in or around high-risk storage complexes before escalation.
Pre-Fire Suppression Lines：Cluster-deployed capsules establish suppressant barriers ahead of advancing firefronts.
