Piped Network FM200 Fire Suppression System
The Flarenix Piped Network FM200 Fire Suppression System is an engineered fire protection solution designed for large-scale, multi-zone environments where centralized agent storage and precise, distributed suppression are required. Unlike standalone cabinet-based FM200 systems, this FM200 Fire Suppression system deploys FM200 gas through a pressurized piping network and strategically placed discharge nozzles, ensuring uniform coverage and rapid suppression across multiple fire hazard zones.
With working pressures up to 5.3 MPa (769 psi) and a ≤10-second discharge time, this clean agent system meets the stringent requirements of NFPA 2001, UL, and FM standards, making it ideal for mission-critical environments such as data centers, electrical substations, industrial plants, and high-security facilities.
Key Features

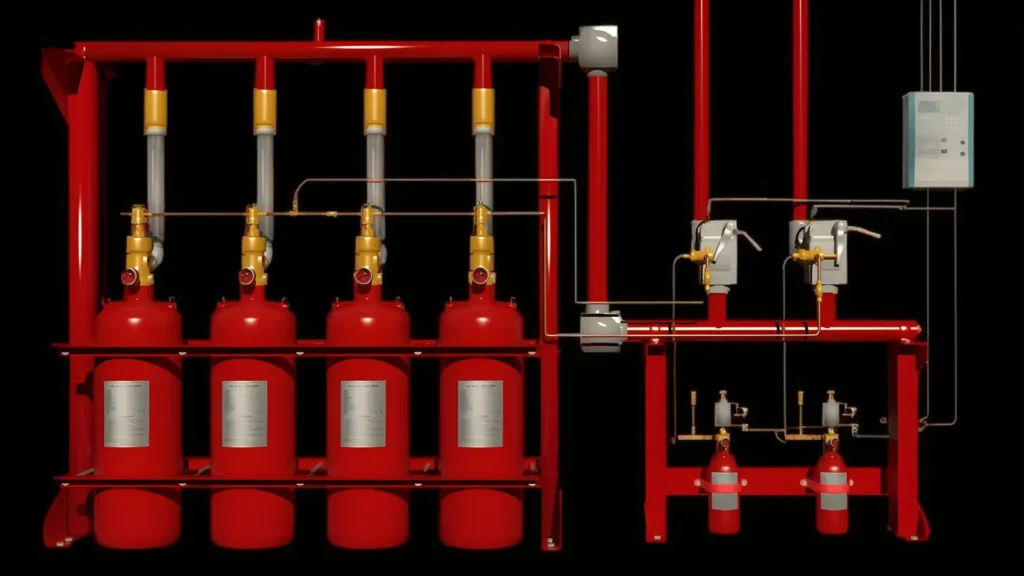

- Multi-Zone, Centralized Suppression – A single FM200 cylinder bank protects multiple rooms or compartments, optimizing storage and reducing the need for separate suppression units.
- Engineered Pipe Network for Precise Agent Distribution – Piping layout, nozzle orifice sizing, and flow characteristics are designed per NFPA 2001 hydraulic calculations, ensuring consistent FM200 delivery across all zones.
- Fast, Wide-Area Fire Suppression – FM200 is discharged within ≤10 seconds, effectively suppressing fires before they spread or cause damage to critical assets.
- Scalable & Customizable Design – The system can be expanded or reconfigured based on facility growth and evolving fire protection needs.
- No Residue, No Water Damage – FM200 leaves no residue and does not conduct electricity, making it safe for IT equipment, electronics, and sensitive manufacturing environments.
- Advanced Safety & Compliance Monitoring – Includes real-time pressure sensors, leak detection, and electronic actuation controls, ensuring continuous system readiness and compliance with NFPA 2001 and AHJ (Authority Having Jurisdiction) requirements.
Technical Specifications
| Technical Parameter | Metric | Imperial |
| System Working Pressure | 4.2 MPa (at 20°C) | 609 psi (at 68°F) |
| Maximum Working Pressure | 5.3 MPa (at 50°C) | 769 psi (at 122°F) |
| FM200 Agent Fill Density | 950 kg/m³ | 59.3 lb/ft³ |
| Discharge Time | ≤10 seconds | ≤10 seconds |
| Actuation Cylinder Pressure | 6 MPa | 870 psi |
| Actuation Cylinder Capacity | 4L, 6L, 8L, 10L | 1.06 gal, 1.59 gal, 2.11 gal, 2.64 gal |
| System Operating Voltage | DC 24V | DC 24V |
| System Operating Current | 1.3A | 1.3A |
| Operating Temperature Range | 0°C to +50°C | 32°F to 122°F |
| Activation Method | Automatic / Manual / Mechanical Emergency | Automatic / Manual / Mechanical Emergency |
Application
The Flarenix Piped Network FM200 Fire Suppression System is specifically designed for complex, multi-room facilities requiring centralized, distributed fire suppression with hydraulic precision and regulatory compliance.
Enterprise Data Centers & IT Infrastructure

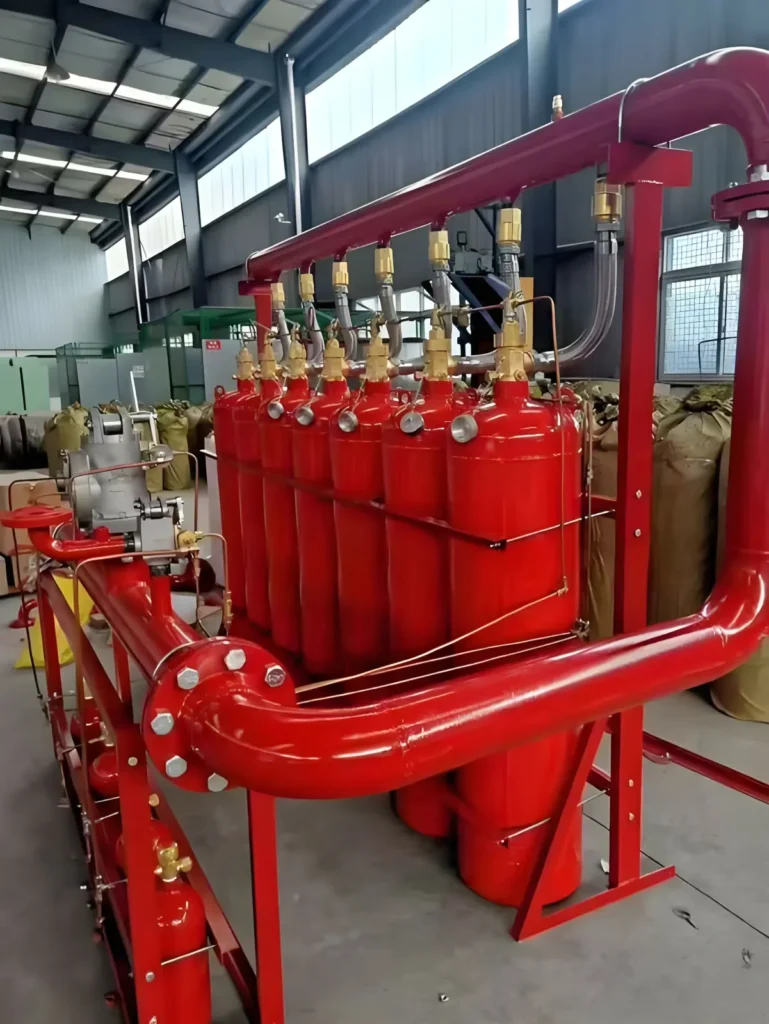

Data centers, cloud computing hubs, and telecom facilities require fire suppression coverage across multiple server rooms, raised floors, and cooling zones. Unlike cabinet systems, the piped network FM200 system enables centralized gas storage with a network of discharge nozzles, ensuring full facility protection with optimized agent distribution.
Electrical Substations & Power Generation Facilities
High-energy environments, such as switchgear enclosures, control panels, and battery storage facilities, require zoned suppression for different compartments. The Flarenix piped network system ensures precise FM200 release at each hazard point, reducing the risk of fire-induced power outages and equipment failures.
Industrial Manufacturing & Cleanroom Facilities
Manufacturing plants, pharmaceutical cleanrooms, and semiconductor fabs cannot afford downtime or contamination from fire suppression agents. The FM200 piped system integrates with industrial safety protocols, delivering targeted suppression without disrupting sensitive production environments.
Secure Government, Banking & Archival Storage Areas
Government data centers, financial institutions, and high-security archives require multi-room suppression with minimal structural modifications. The piped network FM200 system offers centralized, scalable fire protection, ensuring compliance with regulatory fire safety standards while maintaining full data and asset security.
Custom Solutions
The Flarenix Piped Network FM200 Fire Suppression System provides high-performance, scalable fire protection for large, multi-zone environments, ensuring rapid response, minimal infrastructure impact, and compliance with U.S. fire safety regulations.
- Engineered for large, interconnected facilities with precise FM200 distribution
- Hydraulic flow balancing ensures even fire suppression across all hazard zones
- Supports multi-zone suppression with a centralized FM200 storage bank
- NFPA 2001, UL, and FM Approved for regulatory compliance
- Fast discharge (≤10s) minimizes fire damage and downtime
- No residue, safe for IT, industrial, and high-security applications
Contact us today to design a customized FM200 fire suppression network for your facility.
